Specialised Reproduction, Ventilation & Decorative Roofing Products
We have an extensive library of moulds from which to replicate the required profile of roof tiles. Repco is the UK’s only manufacturer of Replica Redland Delta Roof Tiles.
The finished roof tiles can be colour matched and even weathered to suit your requirements.
In many cases Repco can also source original Reclaimed Roof Tiles to suit our clients’ requirements.
| Overall Size | 430x380mm |
|---|---|
| Min. Pitch | 17.5° |
| Max. Pitch | 44° |
| Min. Headlap | 75mm |
| Max Headlap | 125mm |
| Min. Gauge | 305mm |
| Max. Gauge | 355mm |
| Cover Per m2 | 8.2 |
| Weight (tons) per 1000 | 7 |
| Batten Req'd | 2.82m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 380x230mm |
|---|---|
| Min. Pitch | 33.3° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | 305mm |
| Cover Per m2 | 16 |
| Weight (tons) per 1000 | 3 |
| Batten Req'd | 3.3m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 400x275mm |
|---|---|
| Min. Pitch | 30° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | 316mm |
| Cover Per m2 | 13.7 |
| Weight (tons) per 1000 | 3 |
| Batten Req'd | n/a |
| Batten Size (mm) | 25x50 |
| Overall Size | 420x280mm |
|---|---|
| Min. Pitch | 30° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | 345mm |
| Cover Per m2 | 11.6 |
| Weight (tons) per 1000 | 3.8 |
| Batten Req'd | 2.9m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 430x382mm |
|---|---|
| Min. Pitch | 22.5° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm (100mm<30°) |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | 355mm (330mm<30°) |
| Cover Per m2 | 7.9 |
| Weight (tons) per 1000 | 5.5 |
| Batten Req'd | 2.82m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 430x380mm |
|---|---|
| Min. Pitch | 17.5° |
| Max. Pitch | 44° |
| Min. Headlap | 75mm |
| Max Headlap | 125mm |
| Min. Gauge | 305mm |
| Max. Gauge | 355mm |
| Cover Per m2 | 8.2 |
| Weight (tons) per 1000 | 6.24 |
| Batten Req'd | 2.82m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 457x330mm |
|---|---|
| Min. Pitch | n/a |
| Max. Pitch | n/a |
| Min. Headlap | Double Lap |
| Max Headlap | Double Lap |
| Min. Gauge | 190mm |
| Max. Gauge | 190mm |
| Cover Per m2 | 16 |
| Weight (tons) per 1000 | 6 |
| Batten Req'd | Approx 5 |
| Batten Size (mm) | 25x50 |
| Overall Size | 425x290mm |
|---|---|
| Min. Pitch | 30° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | Approx. 340mm |
| Cover Per m2 | Approx. 12 |
| Weight (tons) per 1000 | Approx. 3 |
| Batten Req'd | 3m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 432x315mm |
|---|---|
| Min. Pitch | 17.5° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | 330mm |
| Cover Per m2 | Approx. 11.6 |
| Weight (tons) per 1000 | Approx 5 |
| Batten Req'd | 2.9m/m2 |
| Batten Size (mm) | 25x50 |
| Overall Size | 380x230mm |
|---|---|
| Min. Pitch | 22.5° |
| Max. Pitch | n/a |
| Min. Headlap | 75mm (100mm<25°) |
| Max Headlap | n/a |
| Min. Gauge | n/a |
| Max. Gauge | 305mm (280mm<25°) |
| Cover Per m2 | Approx 16 |
| Weight (tons) per 1000 | Approx 3.5 |
| Batten Req'd | 3.3m/m2 |
| Batten Size (mm) | 25x50 |
These come in various sizes; see chart below.
Available as 12"x12" or 9"x9"
| Description | Overall Size | Min. Pitch | Max. Pitch | Min. Headlap | Max. Headlap | Min. Gauge | Max. Gauge | Cover Per M2 | Weight (Tons) Per 1000 | Batten Req'd | Batten Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Concrete Tile Reproductions | |||||||||||
| Redland Delta | 430x380mm | 17.5° | 44° | 75mm | 125mm | 305mm | 355mm | 8.2 | 7 | 2.82m/m² | 25x50 |

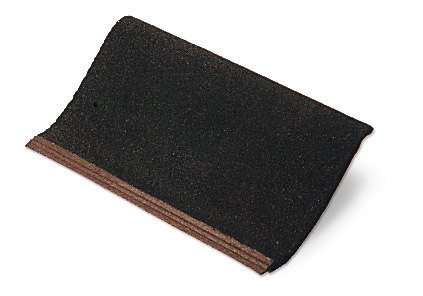

| Redland 52 | 420x280mm | 30° | n/a | 75mm | n/a | n/a | 345mm | 11.6 | 3.8 | 2.9m/m² | 25x50 |

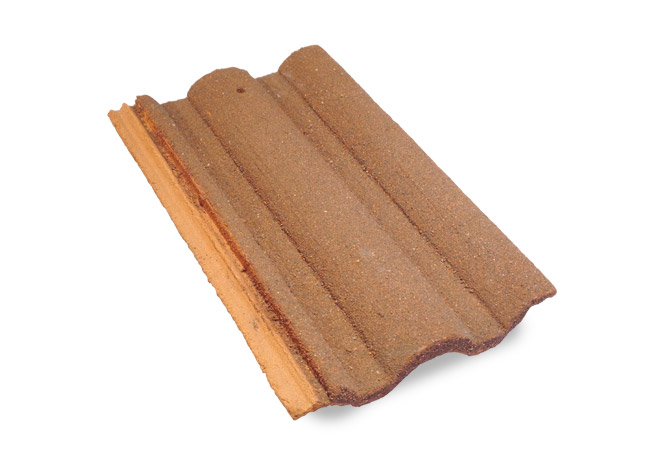

| Redland 51 | 380x230mm | 33.3° | n/a | 75mm | n/a | n/a | 305mm | 16 | 3 | 3.3m/m² | 25x50 |

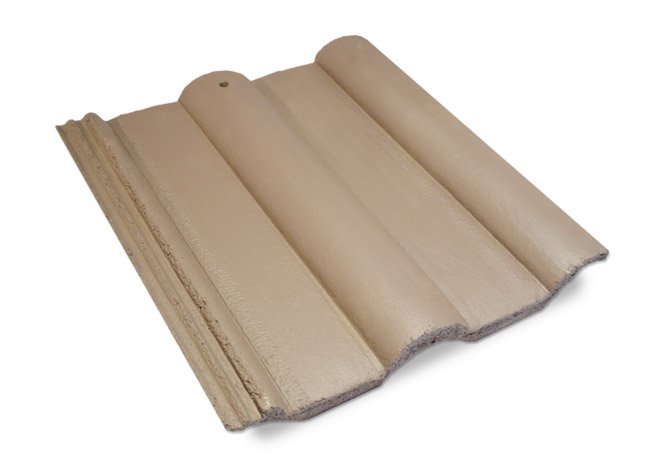

| Redland Caledonian | 430x382mm | 22.5° | n/a | 75mm (100mm<30°) | n/a | n/a | 355mm (330mm<30°) | 7.9 | 5.5 | 2.82m/m² | 25x50 |

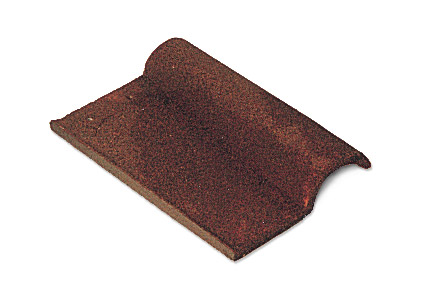

| Redland Statesman | 400x275mm | 30° | n/a | 75mm | n/a | n/a | 316mm | 13.7 | 3 | n/a | 25x50 |

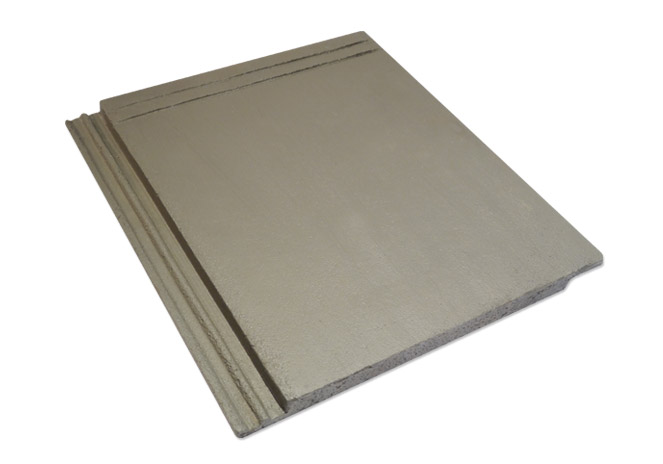

| Redland Stonewold Mk1 | 430x380mm | 17.5° | 44° | 75mm | 125mm | 305mm | 355mm | 8.2 | 6.24 | 2.82m/m² | 25x50 |

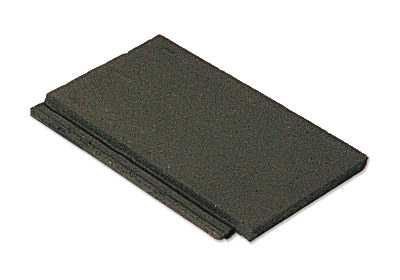

| Essex Chiltern | 432x315mm | 17.5° | n/a | 75mm | n/a | n/a | 330mm | Approx 11.6 | Approx 5 | 2.9m/m² | 25x50 |

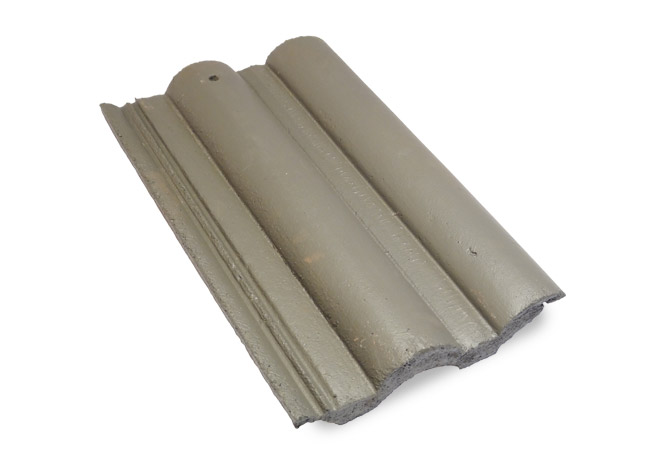

| Essex Duoro | 380x230mm | 22.5° | n/a | 75mm (100mm<25°) | n/a | n/a | 305mm (280mm<25°) | Approx 16 | Approx 3.5 | 3.3m/m² | 25x50 |

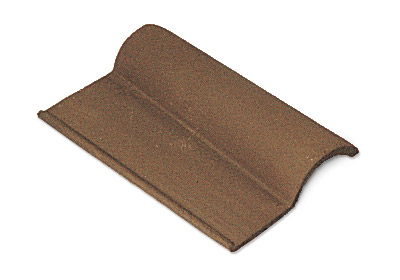

| Anchor Ancona | 425x290mm | 30° | n/a | 75mm | n/a | n/a | Approx 340mm | Approx 12 | Approx< 3 | 3m/m² | 25x50 |

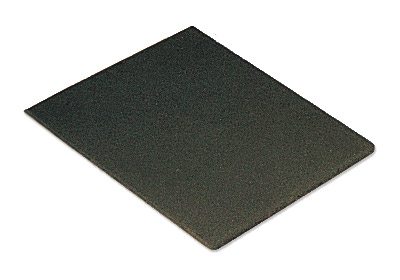

| Crendon Slate | 457x330mm | n/a | n/a | Double Lap | Double Lap | 190mm | 190mm | 16 | 6 | Approx 5m | 25x50 |

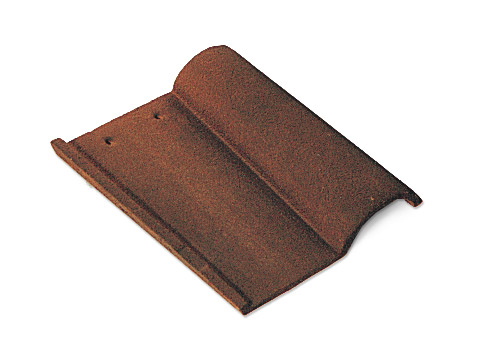

| Bridgwater D/Roman Reproductions | |||||||||||
| D1 Straight Bond | 368x273mm | 35° | n/a | 75mm | n/a | n/a | 241mm | 14 | 3.6 | 3.22m/m² | 25x50 |
| D7 Straight Bond | 419x343mm | 35° | n/a | 75mm | n/a | n/a | 311mm | 9.1 | 4.8 | 3.22m/m² | 25x50 |
| D14 Straight Bond | 419x356mm | 30° | n/a | 75mm | n/a | n/a | 311mm | 9.1 | 5.95 | 3.22m/m² | 25x50 |
| R1 (Reynardo) Straight Bond | 419x356mm | 30° | n/a | 75mm | n/a | n/a | 311mm | 9.1 | 5.9 | 3.22m/m² | 25x50 |
| D11 Cross Bond | 419x343mm | 30° | n/a | 75mm | n/a | n/a | 311mm | 9.7 | 5.5 | 3.22m/m² | 25x50 |
| D12 Cross Bond | 419x356mm | 30° | n/a | 75mm | n/a | n/a | 311mm | 9.7 | 5.9 | 3.22m/m² | 25x50 |
| PLEASE NOTE: TILE BATTEN AND COVERAGE EXCLUDE WASTE | |||||||||||
| The above reproduction tiles are available in most of the original colours | |||||||||||
